As the term of the BnT backup (point. 1.2.4 ) is extremely long (approx. 2-3 hours), you
should initiate this 1-2 days before the start of delivery.
Delivery in the LCS
Create new delivery ID
The structure of the delivery ID should be as follows (for
all new customers):
PG+NNN (three-digit numeric).0 or .1 or .2 for correction
deliveries
These are created either via the "+" at the top right or via the menu using the duplicate function. For older projects, there is often no ".0" and ".1" at the end. However, this makes sense for new customers who have a fixed delivery schedule, as otherwise the order and number communicated to the customer would get mixed up in the event of corrections.
Create delivery:

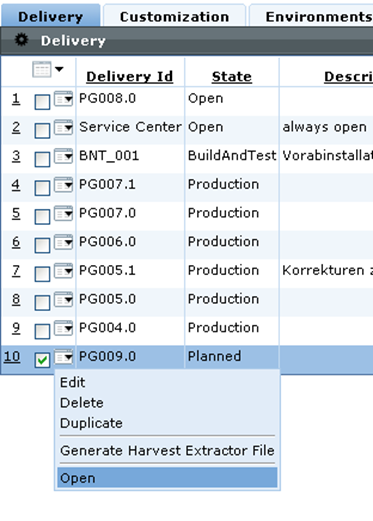

set the created delivery to OPEN:
Compile delivery
Switch to the "Service Center" delivery
Determine which parcels are to be delivered:
The parcels awaiting delivery are pushed to the new delivery.

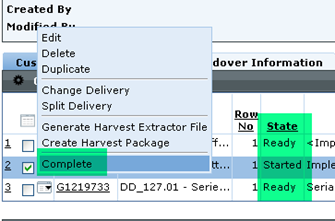

Set all packages to "Ready":

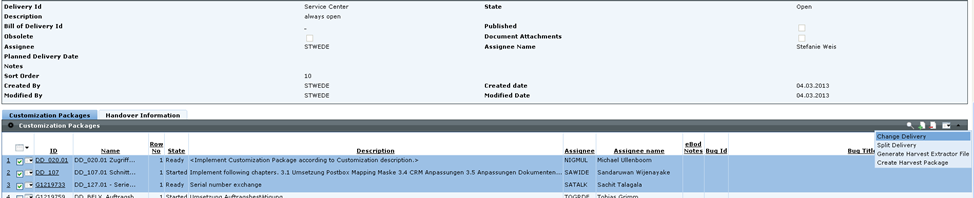

Change delivery status

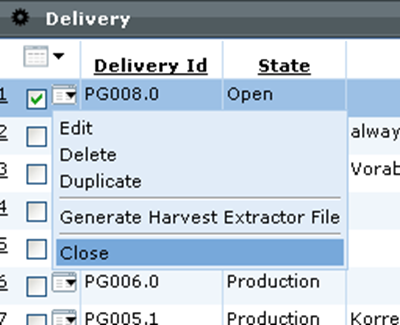

The delivery is now closed (this is only possible when all parcels are set to "Ready"):
Generate Harvest Extractor File
Now extract the delivery from the harvest ("Generate Harvest Extractor File"):

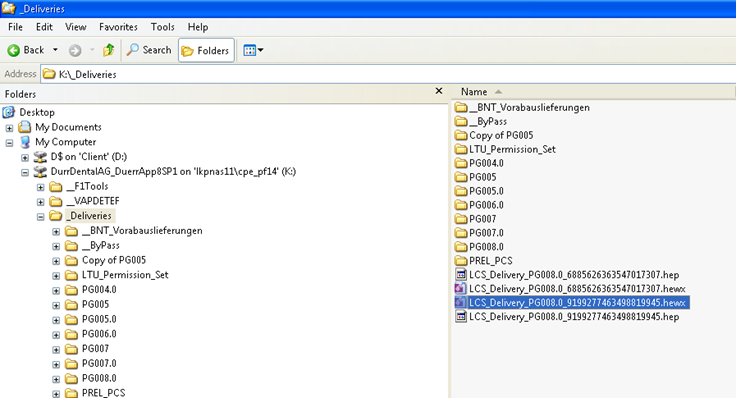

Always select "K:\_Deliveries" as the storage location first!
Control UPG, CRE
Check whether UPG or CRE are included. Then reject the package and return it to the developer.
IFS Solution Developer (ISD)

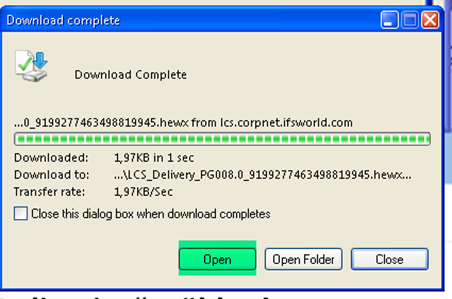

open after saving:
alternatively double-click on Extractor File:
Display of all files included in the delivery:
Check Harvest Bypass
RMB "Check Harvest Bypass" must always be used to check whether any program versions are bypassed by the delivery.
possible result:

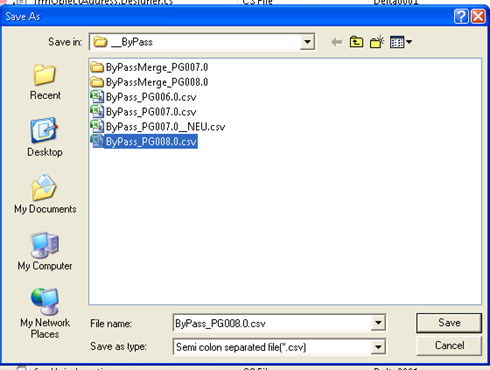

è Save log via ByPass:

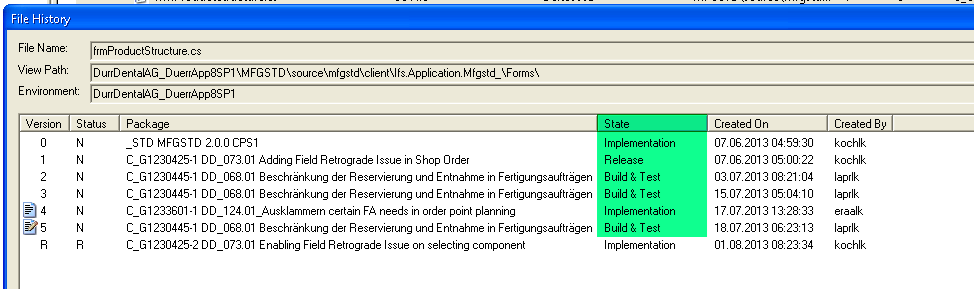

Example:
version 1ß
delivered
version 4ß
not delivered
versions 2, 3 and 5ß
are to be delivered now
The "Check Harvest Bypass" function would therefore report that version 4 of this file has not yet been delivered and is "bypassed" by the current delivery.
The status "Build & Test" for the files of the current delivery is only visible AFTER the promote, but helps when processing the ByPass. It is therefore best to perform the ByPass check first, then promote, then merge the ByPass files.
Desirable result of the check:
The bypass check only needs to be carried out once, it runs the same for all files in the delivery (not just for the selected one).
Treatment ByPass
If the Harvest Bypass produces a file list as a result:
LNG, TRS and terms can generally be ignored
All other files:
-
Check whether a skipped package can
perhaps be delivered after all
-
if not: merge or the delivery will be postponed!
If you decide to merge (depends on how urgent the delivery is and whether
you can wait for the rest):
The aim is to ensure that only those adaptations / changes are supplied that are actually intended to be supplied.
Promote
(Provided the delivery is carried out)
Now the packages in Harvest must be moved from "Implementation" to "Build&Test" or "Test" using "Promote":

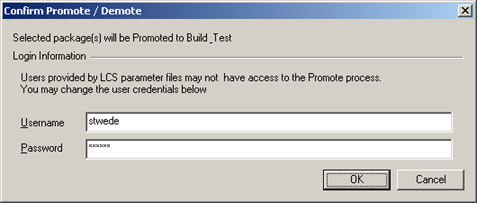

Harvest login (please use your own
user):
the packages are now set to "Build&Test":
ATTENTION: after "Promote", close the window with "Close". It will not close by itself! Do not click on "Promote" again, otherwise the status will be increased even further!
After "Close", the display in
the Solution Developer is updated:
Backup of the BnT
Before
installation, make a backup of the BnT in order to reset it in the event of an
error.
Wait until green.
Download
The download takes place after the bypass check. The delivery list is prepared for this:
K:_Deliveries
Back in the Solution Developer, the download is started via RMB:
To avoid problems with current or previous ByPass merges, the "Download Latest in View" checkbox should always be set:
This loads the latest version of the
file from the current status (Build&Test).
Note: there is no "Original"
folder in the Harvest download as a result
Build
The current cif(x) file must be loaded before the build:
The delivery is then built (BUILD).
"Deployment
order based on file extension":
causes the sequence of program calls in the installation script to be created based on the file types and not according to modules (i.e. as before Apps8).
The build function is only possible after a download! The menu item is not active/visible beforehand.

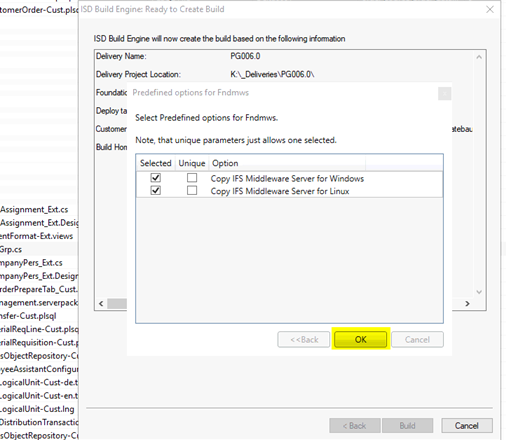

If the following prompt appears, confirm it with OK.

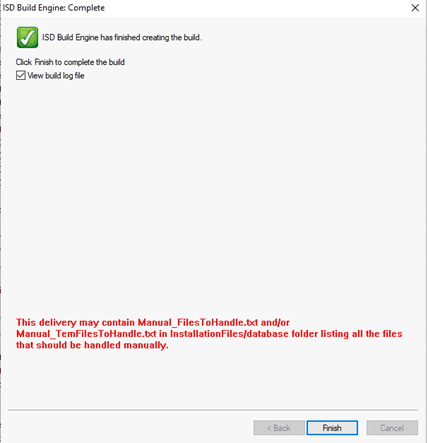

This window appears after Build:
Build process:

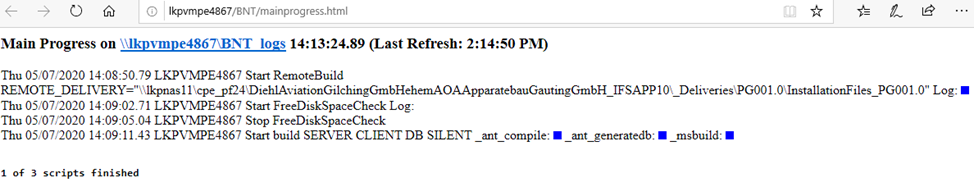

After starting the build process, the following page opens, which shows the progress of the remote build:
http://lkpvmpe4867/BNT/mainprogress.html
Logfiles:
\\lkpvmpe4867\BNT_logs
It is essential to ensure
that all points are completed without errors (green). The creation of the
delivery is only complete when "End main" is displayed at the end.
The Solution Developer can then be
closed
Structure of a delivery
Installation Files
The delivery directory contains the
"InstallationFiles" folder, which contains the actual delivery.
The server files are stored under
"Database". The installation is carried out via the tem files. The
subdirectories contain the individual programs.
The folders next to "Database" (client, installer, server etc.) contain the ExtendedServer files.
Manual Installation
If there are files under ManualInstallation, these must be considered separately and a decision made as to whether they can be included in the installation scripts for the automatic run or must be installed manually.
Ifs.PackageManagement.exe / Ifs.DEV.PM.Utility.exe
No
longer necessary.
Parameter entries may be required in the installation programs. To automate this, the required parameters can be determined using Ifs.PackageManagement.exe or Ifs.DEV.PM.Utility.exe:
The parameters determined are copied to the define.tem file:
This procedure is necessary for versions smaller than Apps8. From Apps8 onwards, the input parameters are maintained via deploy.ini.
Installation on the BnT
Goto relevant VM
Stop managed-servers
before instalation
Goto ifs_home location and run installer.cmd as admin and proceed with remaining steps.
Give the instalation files path as instalation folder when needed.
Check whether it has been
installed.
select * from module_tab t WHERE t.description='DELIVERY' ORDER BY t.reg_date
Finalize delivery
LCS - Change status
Once the delivery has been successfully installed on the internal BNT identifier (including checking the logs and testing the login to IFS EE), the delivery is "upgraded" in the LCS:
Note:
the status in the LCS
cannot be reversed!
FTP
The entire delivery is zipped and
copied to the FTP server
Log in with your own Windows login:
Copy delivery:
The customer has access to this
FTP directory and collects the delivery.
Prepare delivery bill and e-mail
This step only needs to be done once per customer.
Attention this template cannot be deleted or
edited
Create delivery bill
Exclude Duplicate Lines
For each case included in the
delivery, only one line is displayed in the delivery bill, regardless of how
many Harvest packages are behind it (if there are several customization
packages with different Ebod notes for a case, several items are created on the
delivery bill)
Template name
A predefined template can be
selected here. In this example, it is the installation on the BNT, the actual
delivery to the customer takes place later. The template "PRE" is
therefore selected.
New Bill Id
Designation of the delivery bill.
Can be freely assigned. In this case with the prefix "PREL_", as this
is a provisional delivery bill.

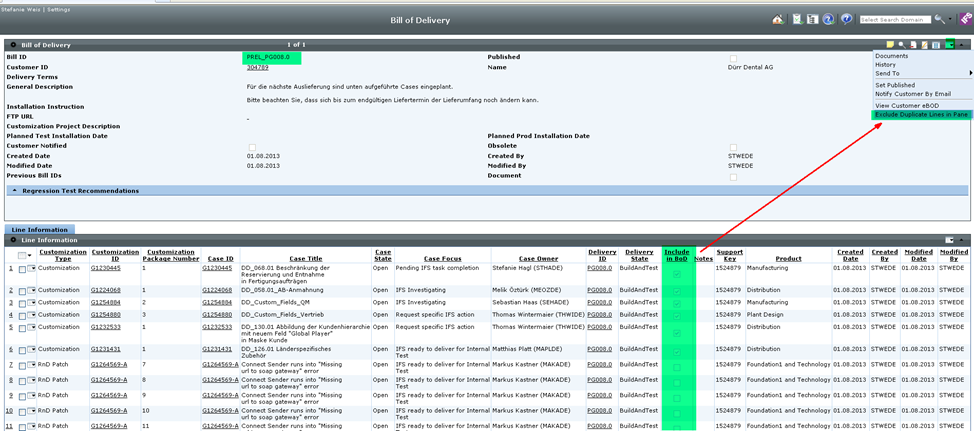

Result:
The "Include in BoD" column shows whether the line is visible on the customer delivery bill (BoD). If "Exclude Duplicate Lines" was forgotten when the delivery bill was created, it can still be added in this screen. Individual items can also be included or excluded:
Send delivery info
As soon as the delivery bill is completed, it is sent to the customer or, as in this case, to the project team:

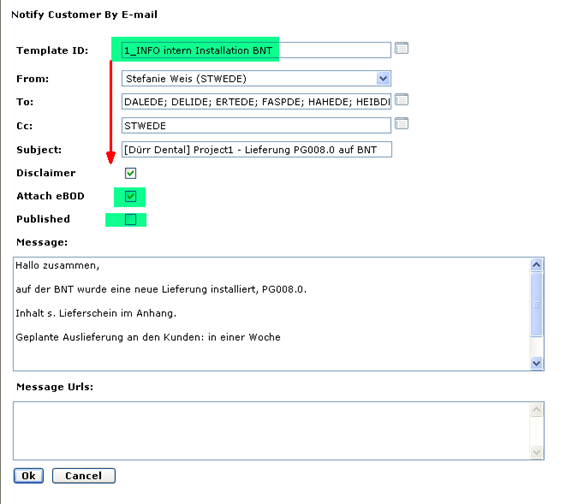

After selecting the template, the form is filled:
The content of the text should be checked again! (does it really fit for this delivery?)
The
"Published" tick must be
set individually depending on the message. For advance or internal deliveries,
it is advisable not to check the box, as a new delivery bill is created for the
final delivery and the link to the published delivery bill becomes invalid.
The "Attach eBOD" checkbox should always be selected. This will attach the delivery bill as a pdf file to the email notification.
LCS - Close delivery tasks
To inform the case owner that an adjustment or bugfix has been delivered, the delivery task must be processed. I.e. for each individual task accept - (complete) - close
In addition, information should be
provided for "Complete"/"Close":
"Delivered with PGXXX on
<date>. Customer installs himself"
resp.
"Delivered and installed on <database> with PGXXX on <date>. Customer is informed."
Reworking

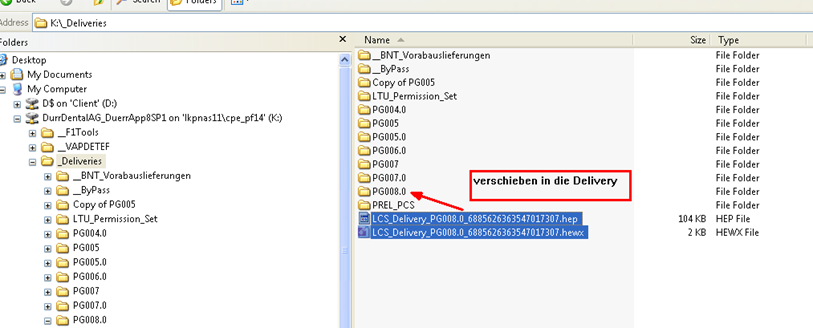

Move Harvest Exctractor files
If the customer has installed on the test, the PG must be moved to the next status "Release for Test" via Promote. To do this, double-click on the hewx file. Then click on any file RMB -> Promote
The same applies if it is then installed on the PROD.
